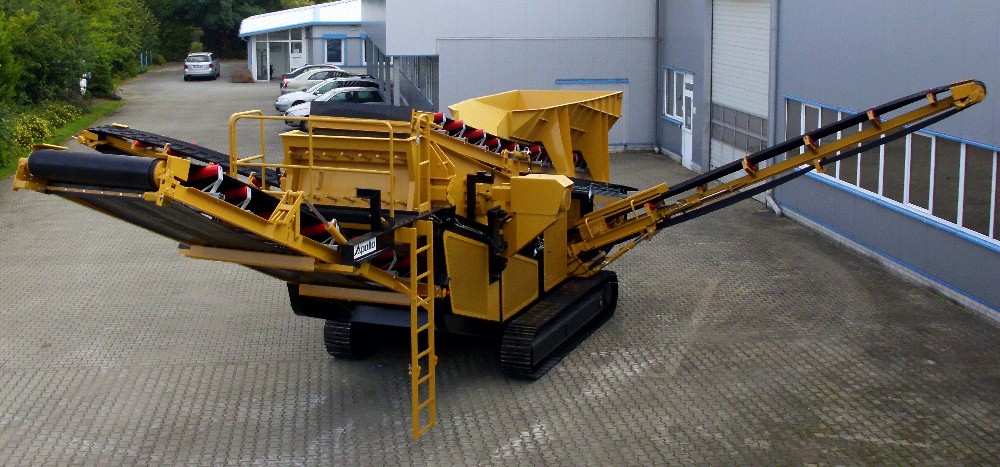

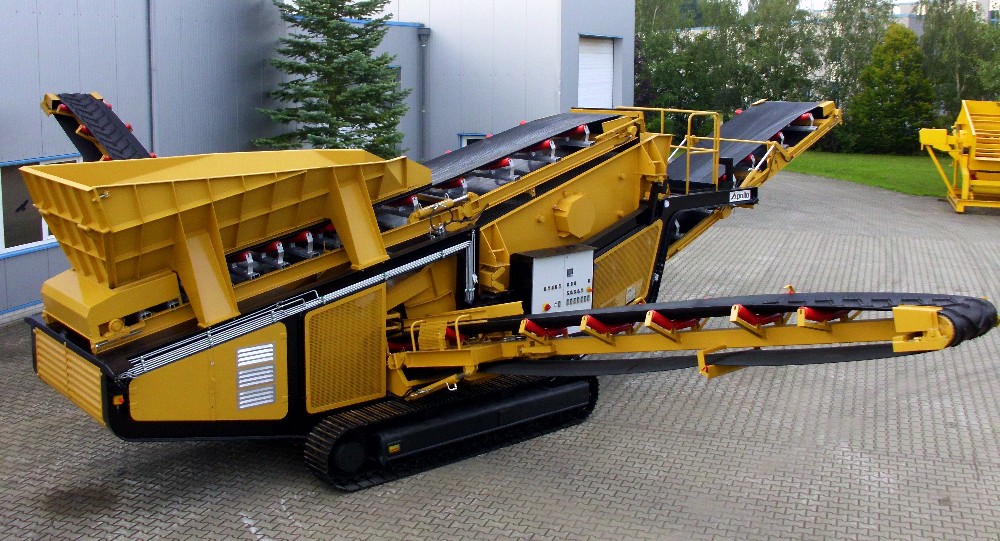

Mobile Screening Plant on Tracks Model SR 4000/2

Mobile screening plant with crawler chassis and twin deck screen box 4,000 x 1,500 mm for the screening of recycling material, natural stone, roof tile debris etc.

Main Components

- Feed hopper with a volume of approx. 3 cubicle metres
- Screen box 4,000 x 1,500 mm
- Discharge conveyor
- Fines conveyor
- Over and medium size conveyors
- conveyors fold hydraulically for transportation
- Powered by a Diesel engine with a 50 kVA generator
- crawler chassis

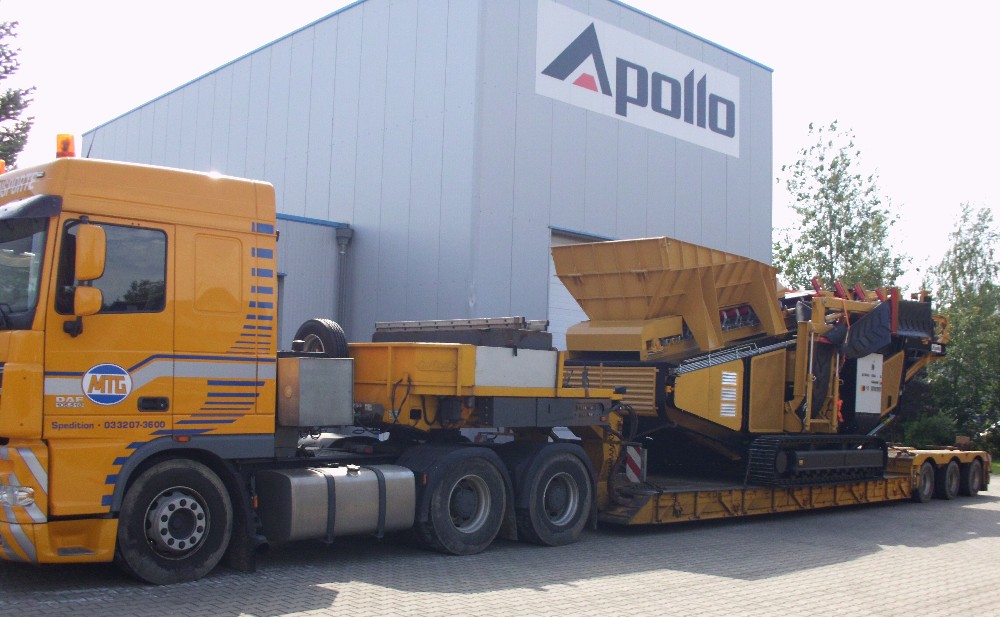

Transport Dimensions

Width : 2,998 mm
Length: 10,800 mm (approx.)
Height: 3,400 mm
Weight: 19 tonnes





apollo_sr_3000-2__sr_4000-2_en.pdf [1.087 KB]
